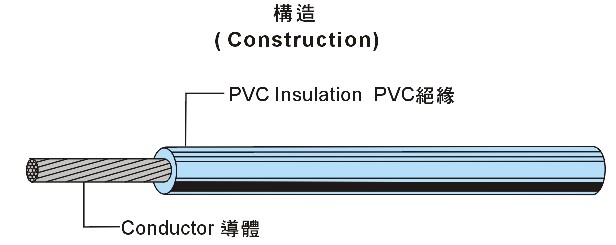

UL1015 Hook-Up Wire PVC 电子线

■说明：
·导体使用单条或绞线，32-10 AWG裸软铜或镀锡软铜线
·PVC绝缘
·额定温度：105℃； 额定电压：600volts
·可通过UL VW-1垂直耐燃测试
·使用标准厚度，易剥，截断容易
·具抗酸，耐油性，防潮，防霉等特性
·参考标准：UL 758，UL 1581

■ 应用：
 ·一般电子，电器设备内部配线

■ PRODUCT DESCRIPTION：
·Tinned or bare, stranded or solid copper conductor,32-10 AWG.
·Color-coded PVC insulation.
·Rated temperature:105℃. Rated voltage:600 volts.
·Passes UL VW-1 vertical flame test.
·Uniform thickness of wire to ensure easy stripping and cutting.
·Resistant to acids, alkalies, oils, moisture and fungus.
·Reference standard：UL subiect 758，UL 1581.

■ APPLICATIONS：
·For general purpose internal wiring of electronic and electrical equipment.
