■产品说明:
●导体使用裸软铜或镀锡软铜绞线
●半硬PVC 绝缘
● 芯线集合后用棉纸带隔离
●PVC 被覆,多芯电脑线与资料传输电缆
●额定温度:60℃ or 80℃;额定电压:30V
●通过UL VW-1 垂直耐燃测试
●参考标准:UL758,UL1581
■应用:
●滑鼠,电视游乐器,仪器,电脑线
■PRODUCT DESCRIPTION:
●Tinned or bare stranded copper conductor
●Color-coded SR-PVC insulation
●Cores cabled under tissue tape shield
●PVC jacket , multi-core computer and data transmission cable
●Rated temperature:60℃ or 80℃.Rated voltage:30V
●Passes UL VW-1 vertical flame test
●Reference standard:UL758,UL1581
■APPLICATIONS:
●Use for mouse,TV game,instrumentation and computer cables

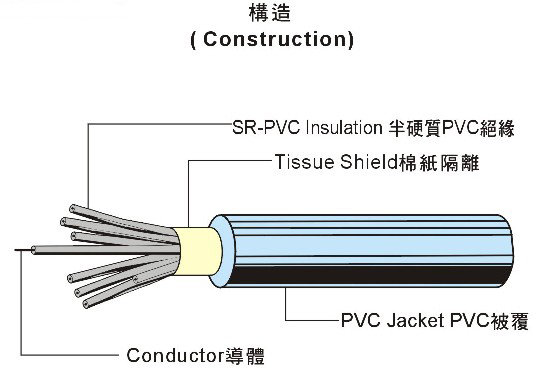

| ■ 产品结构CABLE CONSTRUCTION: | |||||
| Conductor 导体 | Insulation Thickness | No.of Core | Jacket Thickness | Overall Diameter | |
| 线号 | 线数/线径 | 绝缘厚度 | 芯数 | 被覆厚度 | 完成外径 |
| AWG | No./mm | mm | No. | mm | mm |
| 30 | 7/0.102 | 0.23 | 2 | 0.26 | 2.30 |
| 3 | 2.50 | ||||
| 4 | 2.70 | ||||
| 5 | 2.90 | ||||
| 6 | 3.00 | ||||
| 7 | 3.10 | ||||
| 8 | 3.40 | ||||
| 9 | 3.60 | ||||
| 10 | 3.70 | ||||
| 12 | 4.00 | ||||
| 28 | 7/0.127 | 0.23 | 2 | 0.26 | 2.40 |
| 3 | 2.60 | ||||
| 4 | 2.80 | ||||
| 5 | 3.00 | ||||
| 6 | 3.10 | ||||
| 7 | 3.30 | ||||
| 8 | 3.60 | ||||
| 9 | 3.80 | ||||
| 10 | 3.90 | ||||
| 12 | 4.20 | ||||
| 26 | 7/0.16 | 0.23 | 2 | 0.26 | 2.60 |
| 3 | 2.80 | ||||
| 4 | 3.00 | ||||
| 5 | 3.30 | ||||
| 6 | 3.40 | ||||
| 7 | 3.60 | ||||
| 8 | 3.90 | ||||
| 9 | 4.10 | ||||
| 10 | 4.30 | ||||
| 12 | 4.60 | ||||
| 24 | 7/0.203 | 0.23 | 2 | 0.26 | 2.90 |
| 3 | 3.10 | ||||
| 4 | 3.40 | ||||
| 5 | 3.70 | ||||
| 6 | 3.80 | ||||
| 7 | 4.00 | ||||
| 8 | 4.40 | ||||
| 9 | 4.60 | ||||
| 10 | 4.80 | ||||
| 12 | 5.20 | ||||
