UL1672 电子线

■说明:

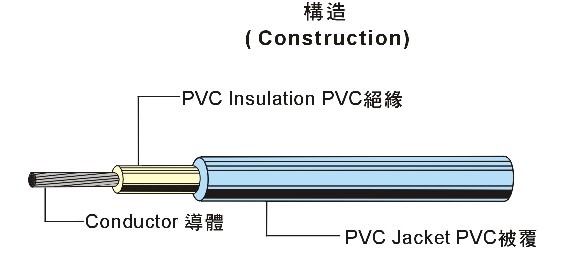

●导体使用单条或绞线，裸软铜或镀锡软铜线。
●PVC绝缘，PVC被覆。
●额定温度：105℃，额定电压：300volts。
●可通过UL VW-1 垂直耐燃测试。
●使用标准厚度， 易剥， 截断容易。
●被覆体厚度5-40mils (0.127-1.016mm)
●参考标准：UL 758，UL 1581

■应用：
●用于电子及电器设备内部配线。


■PRODUCT DISCRIPTION:
●Stranded or solid,tinned or bare copper conductor.
●Color-coded PVC insulation and PVC jacket.
●Rated temperature：105℃. Rated voltage：300 volts.
●Passes UL VW-1 vertical flame test.
●Uniform thickness of wire to ensure easy stripping and cutting.
●Jacket thickness：form 5 to 40 mils (0.127 to 1.016mm).
●Reference standard：UL subject 758，UL 1581.

■APPLICATIONS：
●Internal wiring of electronic and electrical equipment.
