UL2835 网线

■ 说明：

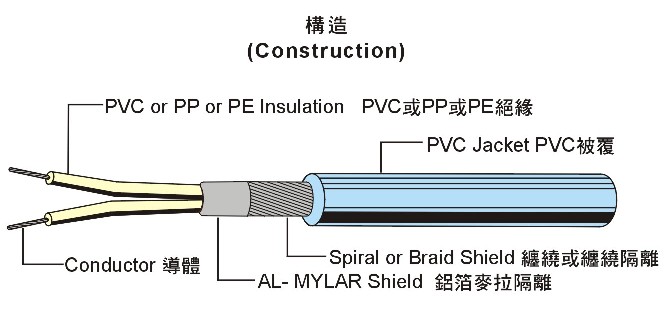

● 导体使用裸软铜或镀锡软铜绞线
●PVC或PE或PP绝缘
●裸软铜或镀锡软铜线地线
●可加上裸软铜或镀锡软铜线编织隔离
●PVC被覆，也可采用NC-PVC被覆
●额定温度：60℃；额定电压：30volts
●可通过UL VW-1 垂直耐燃测试
●参考标准：UL 758，UL 1581

■ 应用：
●低压电子电器设备内部用线  网络线，常用的网络工程的网络线材。

■ PRODUCT DESCRIPTION：
● Tinned or bare stranded copper conductor.
● Color-coded PVC or PE or PP insulation.
● Tinned or bare copper drain wire.
● Tinned or bare copper wire braid shield available.
● PVC jacket, Non-migration PVC jacket available.
● Rated temperature：60℃. Rated voltage：30 volts.
● Passes ULVW-1 vertical flame test.
● Reference standard：UL subject 758，UL1581.

■ APPLICATIONS
●Internal wiring in low voltage circuits of electronic equipment.
